inquiry@ato.com.cn2/2-Way Pneumatic Solenoid Valve, 12V/24V/110V/220V

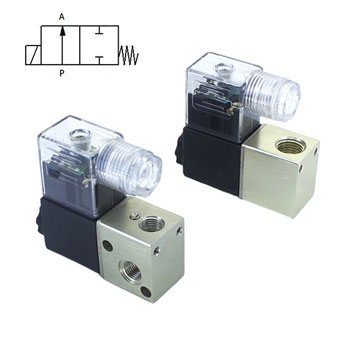

The 2/2-way pneumatic solenoid valve has 2 way 2 position. The 2 position means two working positions, namely, the solenoid valve has two state of switching on and off the air path. The 2 way means that there are two port connecting the solenoid valve to the pipeline. And it is internally piloted operated.
This series of pneumatic solenoid valve is used to shut off and release the air, and the input voltage available for 12V DC, 24V DC, 110V AC and 220V AC. The body material is Aluminum Alloy and seal material is NBR. The action frequency of this valve can be up to 5 cycles per second. It is uni-directional, so pay attention to the installation direction. Besides, this pneumatic solenoid valve needn't lubrication.
2/2 way Pneumatic Solenoid Valve Specification
| Model | 2V025-06 | 2V025-08 |
| Number of Ports | 2 way | |
| Number of Positions | 2 position | |
| Operation Mode | Internally piloted | |
| Flow Model | Uni-Directional | |
| Port Size (Optional) | Rc 1/8" | Rc 1/4" |
| Media | Air | |
| Operating Pressure Range | 0.15~0.8MPa (22~116PSI) | |
| Max. Pressure Resistance | 1.2MPa | |
| Voltage (Optional) | 12V DC, 24V DC, 110V AC, 220V AC | |
| Voltage Tolerance | -10%~+10% | |
| Operating Temperature | 5℃~60℃ (41℉~140℉) | |
| Insulation Grade | Class B | |
| Protection Grade | IP65 | |
| Body Material | Aluminum Alloy | |
| Seal Material | NBR | |
| Wiring Method | Terminal type | |
| Max. Action Frequency | 5Hz (5 cycles/second) | |
| Lubrication | No | |
